Caw log hom tag nrho-welded pob valve yog tsim rau kev txiav lossis txuas qhov nruab nrab hauv cov kav dej ntawm cov roj av, tshuaj lom neeg kev lag luam, thermal fais fab chaw nres tsheb thiab lwm yam kev ua haujlwm Class150 ~ 300Lb thiab kev khiav hauj lwm kub -29 ~ 200c.Application medium: petroleum, purified naturalgas, acid natural gas, gas, water and the coal slurry, etc. - kua linkage.
Syam ntxwv ntawm lub tsev
Wom log tvpe fuly welded balwale adots tsau balsitnucture. lub uper thiab ower shat ntawm lub balare eouiped nrog bearnos.smal onerating orue.lub bal ntawm thi stnucture yog fixeddoes tsis txav afer compresjon, lub desion muaj ob sealng inas muab enouoh pre-tiohtening quab yuam los xyuas kom meej seain, ua tiav ob-sided quab yuam seain, sealing txheej txheem yog ntau dua. taug qab thiab kuaj pom los ntawm lub khoos phis tawj siab tshaj plaws sothe machining precision ntawm lub kheej kheej yog highAs lub matenial ntawm wale bodyis tib yam asthat ntawm cov yeeb nkab, yuav tsis muaj qhov sib txawv tsis sib xws los yog defomation vim lub earthouake thiab vehicde pasina throuoh lub qround. Lub seaing rina lub cev yog ua los ntawm Pf matenalwith20% C (carbon), uas ua kom tsis txhob muaj dej paug (0%).
Tus qauv ua tiav
Tsim specification: APl 6D, ASMEB 16.34
Cov chav kawm siab-kub: ASME B16.34, AP1608
Tus qauv ntev: ASME B16.10, GB12221
Lub taub qab vuam daim ntawv: ASME B16.25, ASME B31.4 / 31.8
Kev soj ntsuam thiab kuaj: APl 598, API 6D, GB13927
Kev ntsuas hluav taws kub: AP | 607, API 6FA UAS
ttPerformance parameter
Valve No.: Q361F
Siv tau qhov kub thiab txias:-29C≤T≤200'CSi nruab nrab: dej, huab cua, roj thiab lwm yam kua uas tsis hnov mob nrog carbon steelDriving hom: cab log hom

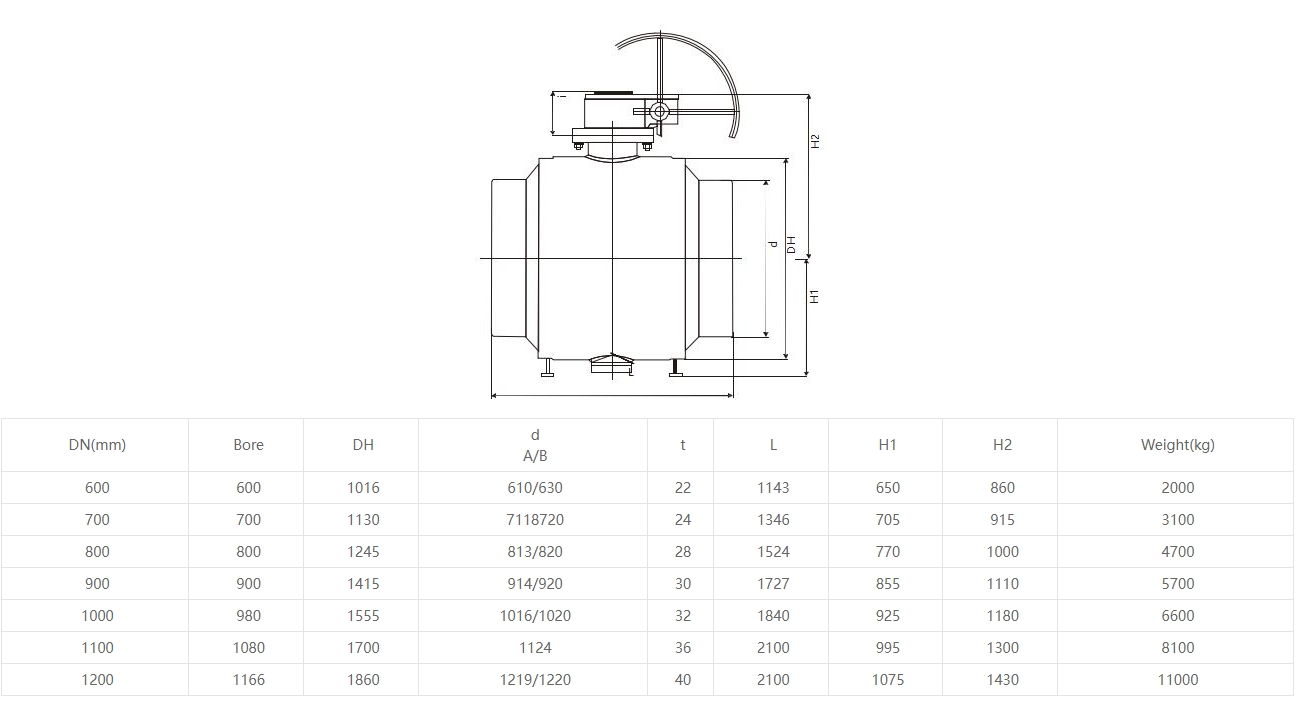

Khoom Ntev
Tom ntej: Q361F cab iav ntab welded pob valve
